Composite Corner Removal Punch

MODELS
KM-101 (Single Fold Desktop)
KM-102 (Double Fold Desktop)
KM-103 (Desktop with Mounting Channels)
The punch is manufactured as desktop and pneumatic.

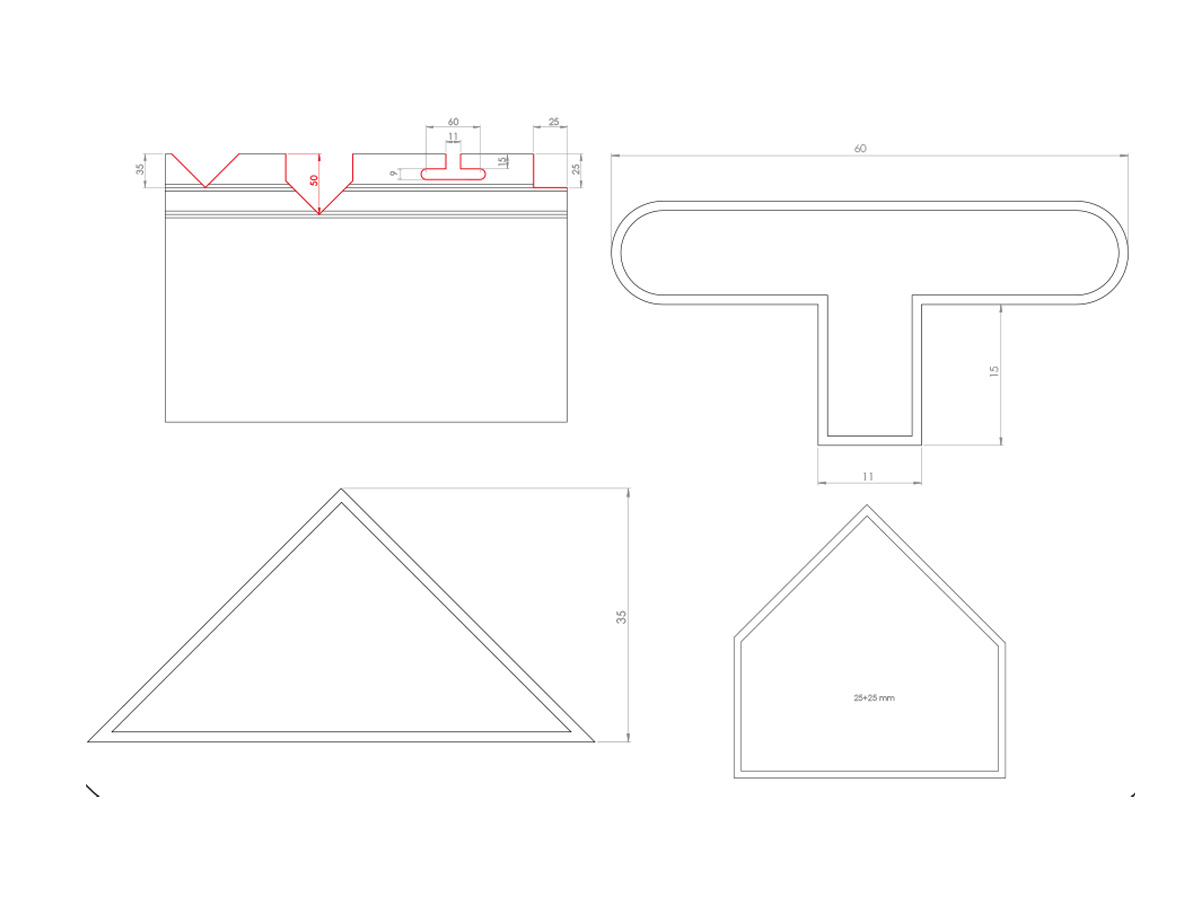

It makes corner cutouts in various forms of composite plate and aluminum sheet.
It can be used on composite up to 6 mm,
and aluminum sheet up to 1 mm.
Cutout dimensions are adjusted via the measurement scale.

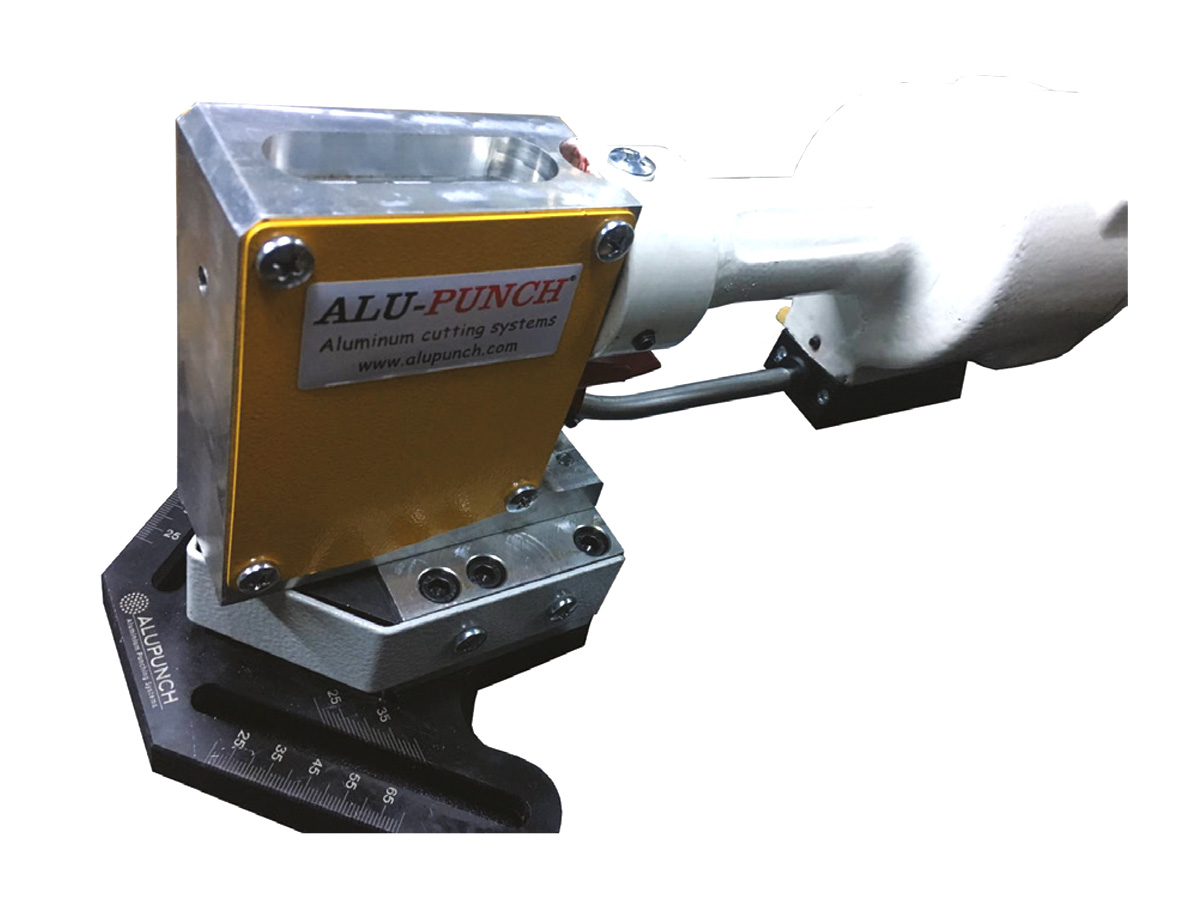

KP-101 (Single Fold Portable)
KP-102 (Double Fold Portable)
It performs corner cutout operations on composite panel and aluminum sheet up to 1.5 mm.
It is produced as manual and portable (pneumatic).
Cutout dimensions are adjusted via scales from the supports. Portable punch weighs 4.5 kg. It operates between 6-8 bar.
